1X4 LAN-WDM

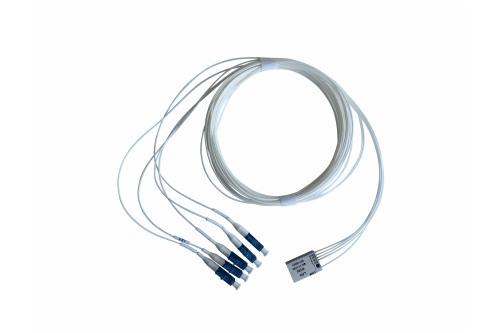

1×4 Lan WDM 是体积小，结构紧凑，性能稳定的四通道波分复用器，四通道中心波长分别为1295.56nm, 1300.06nm, 1304.59nm, 1309.14nm。

Items		Unit	Parameter
Channel Wavelength	CH1	nm	1294.53-1296.59
	CH2		1299.02-1301.09
	CH3		1303.54-1305.63
	CH4		1308.09-1310.19
Wavelength Range		nm	1280-1330
Channel Spacing		GHz	800
Insertion Loss		dB	≤1.4
Isolation	Adjacent	dB	≥25
	Non-adjacent		≥35
Channel Ripple		dB	≤0.5
Insertion Loss Temperature Sensitivity		dB/℃	≤0.005
Wavelength Temperature Shifting		nm/℃	≤0.002
Polarization Dependent Loss		dB	≤0.3
Polarization Mode Dispersion		ps	≤0.2
Return Loss		dB	≥45
Directivity		dB	≥50
Maximum Power Handling		mw	≤300
Operating Temperature		℃	-10～80
Storage Temperature		℃	-40～85
Packing		mm	18.8510.06.5 or 2086
